Stainless Steel Slotted Filter Support Tube with Flange for Industrial Filtration Systems

High precision stainless steel slotted filter support tube with flange for industrial filtration systems. Made from 304/316 stainless steel, corrosion resistant and durable. Ideal for water treatment, chemical processing, oil and gas filtration equipment. Custom manufacturing available.

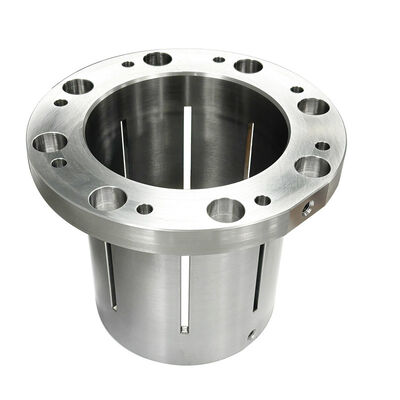

The Stainless Steel Flanged Slotted Filter Support Cylinder is a core structural component widely utilized in industrial filtration systems. Its primary function is to provide support for filter elements and filtration media, or to serve as a fluid distribution structure. Manufactured from high-quality stainless steel via precision CNC machining, this product features exceptional strength, corrosion resistance, and structural stability.

The top of the unit incorporates a standard flanged design, allowing for convenient installation within filtration equipment or piping systems. The surface of the cylinder body features a pattern of uniformly distributed longitudinal slots; this design facilitates the even ingress of fluid into the internal filtration zone, thereby enhancing filtration efficiency and ensuring a stable flow distribution.

This component finds extensive application across various sectors, including petrochemicals, water treatment equipment, food processing machinery, pharmaceutical equipment, and a wide range of general industrial filtration systems.

Manufactured using 304 or 316 stainless steel, the product offers excellent corrosion resistance and mechanical strength, making it suitable for a wide range of complex industrial environments.

Processed using high-precision CNC machine tools, the product features exceptional dimensional accuracy and superior surface finish, ensuring stable and reliable equipment operation.

The cylindrical body features a longitudinal slotted design that facilitates uniform fluid distribution, thereby enhancing filtration efficiency and minimizing fluid resistance.

The top flange structure allows for quick and convenient connection to filter housings or other equipment, simplifying both installation and maintenance.

Customization services are available to meet specific client requirements, including:

• Dimensional Customization
• Customization of Slot Dimensions and Quantity
• Selection of Stainless Steel Material
• Surface Treatment Options

This slotted stainless steel filter support tube is widely utilized in equipment across the following industries:

• Industrial Filtration Equipment
• Water Treatment Systems
• Oil and Gas Equipment
• Chemical Processing Equipment
• Food and Beverage Processing Equipment
• Pharmaceutical Equipment
• Environmental Protection Equipment

Within filtration systems, this component typically serves as a filter element support structure or a fluid distribution mechanism, helping to ensure stable filtration performance.

• Excellent Corrosion Resistance
• High-Strength Structural Design
• Uniform Fluid Distribution
• High Filtration Efficiency
• Long Service Life

Supports OEM and Custom Manufacturing

Leveraging advanced production equipment and a rigorous quality control system, we provide high-quality stainless steel industrial component solutions to clients worldwide.

Please contact us for product quotes and custom solutions.

1. Are you a trade company or manufacturer?

   We are a manufacturer with more than 14 years of experience in CNC machining and sheet metal fabrication.

2. Can you protective my business, will my drawing be safe after you get it?

   Yes, we can sign the NDA before you send the drawing.

3. Available for customized design drawings?

   Yes, CAD, STEP, IGS, PDF, Solidwork, etc.

4. Do you provide samples?

   Yes, there is a sample charge, the sample charge can be refunded when place the order.

5. How soon can I get your quotation?

   Within 12 hours.

6. What's the lead time?

   5-25 working days, based on order quantity.
